LMS Fire Damper Baffle Forming Machine


LMS Fire Damper Baffle Forming Machine

LMS Fire Damper Baffle Forming Machine

  • Brand:

    LMS
  • item no.:

    Fire Damper Machine
  • Payment:

    T/T
  • product origin:

    Guangdong, China
  • Color:

    Customized
  • shipping port:

    Huangpu, China
  • Lead Time:

    90 Days
Contact Us
Product Details

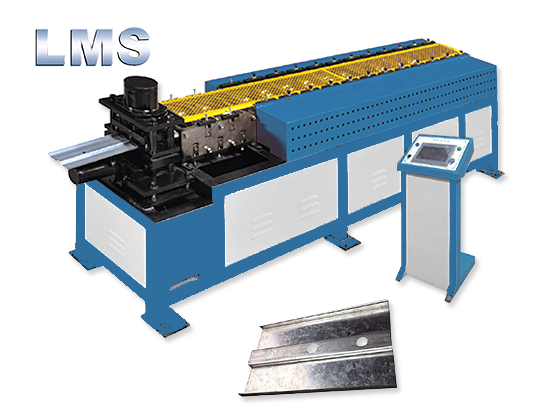

LMS Fire Damper Baffle Forming Machine



LMS Fire Damper Baffle Forming Machine is mainly composed of manual decoiler, roll forming machine, cutting & punching tools, electrical control system and hydraulic control system, widely used for the mass production of fire damper baffle.  It is one of the important production line equipment for fire damper manufacture, with the advantage of high efficiency and precision, and stable performance. The whole line is controlled by Japanese Panasonic PLC, operator can set to run the line automatically and monitor the control process.



Fire Damper Baffle Forming Line Main Technical Parameters:





 Item  Parameters
 Material  Galvanized Plate
 Material Thickness  1.5 - 2.0 MM
 Width of Coil  250 (95) MM
 Weight of Coil  ≤ 2000 KGS
 Forming Height  15 MM
 Motor Power  7.5 KW / 4 KW
 Forming Speed  1 – 15 M, Adjustable
 Plate Length Error  ± 0.5 MM / 1000 MM
 Punching Hole Distance Error  ± 0.5 MM / 1000 MM
 Glancing Flatness  ≤ 1 MM / 1000 MM
 Control Mode  PLC Control
 Main Power Supply  380 V, 50 HZ, 3 Phase
 Hydraulic System Pressure  25 MPa, Working Pressure: 8 – 12 MPa
 External Dimensions of Line  Approx. 5000 MM × 700 MM × 1200 MM (L × W × H)



Fire Damper Baffle Production Line Production Process:

Decoiling → Roll Forming → Straightening, Reshaping → Punching → Cutting To Length → Manual Discharging.



Fire Damper Baffle Steel Roll Forming Machine Composition:



Item Quantity
3T Manual Decoiler 1 Unit
Roll Forming Machine 1 Unit

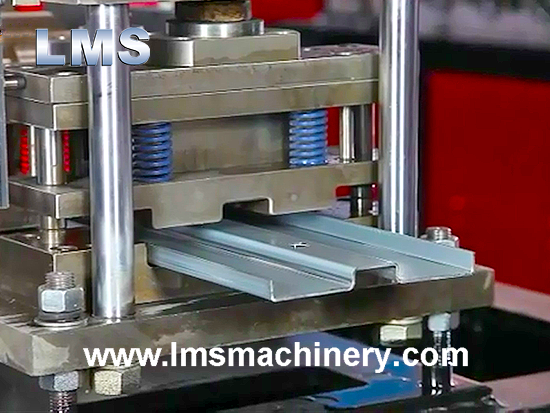

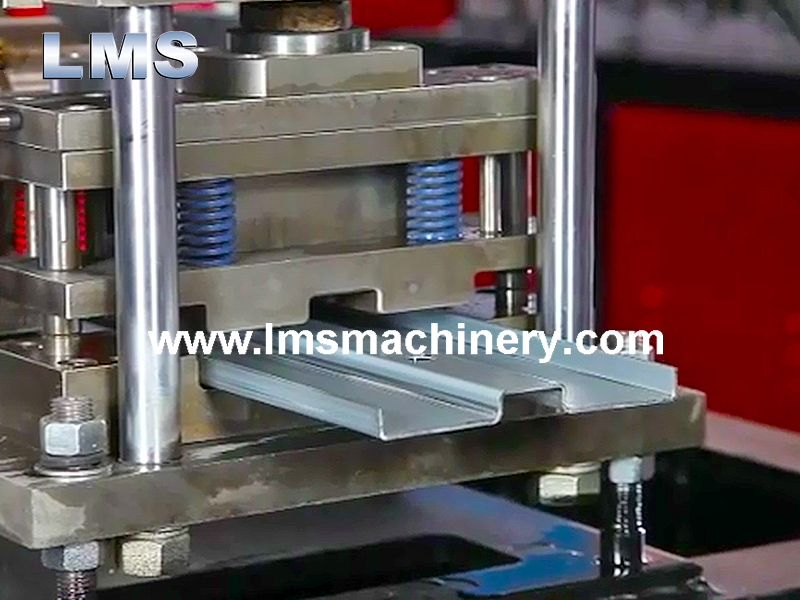

Cutting, Punching Tools Each 1 Set
Electrical Control System 1 Set
Hydraulic Control System 1 Set

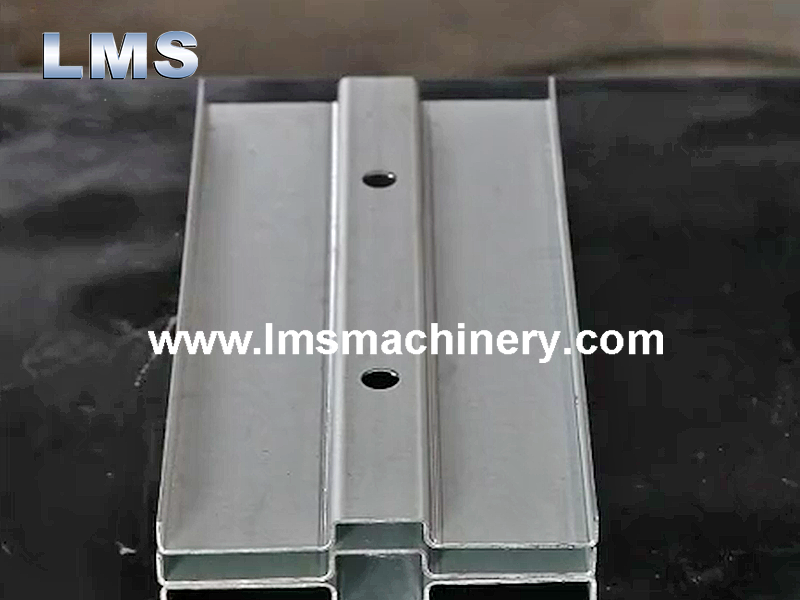

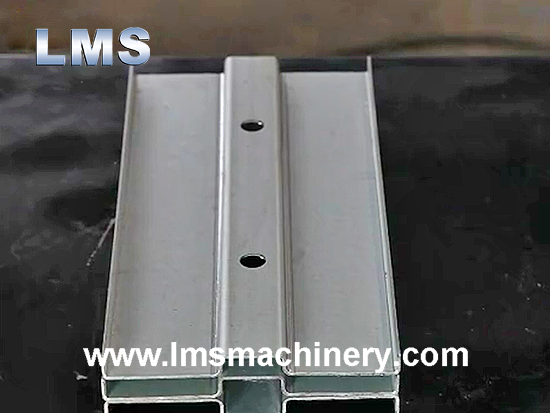

Fire Damper Baffle Making Machine



Fire Damper Machine
