LMS Closed Cross Beam Roll Forming Machine


LMS Closed Cross Beam Roll Forming Machine

LMS Closed Cross Beam Roll Forming Machine

  • Brand:

    LMS
  • item no.:

    Cross Beam Roll Forming Machine
  • Payment:

    T/T
  • product origin:

    Guangdong, China
  • Color:

    Customized
  • shipping port:

    Huangpu, China
  • Lead Time:

    90 Days
Contact Us
Product Details

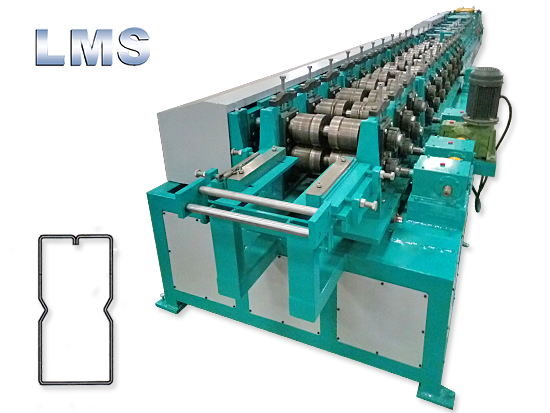

LMS Closed Cross Beam Roll Forming Machine

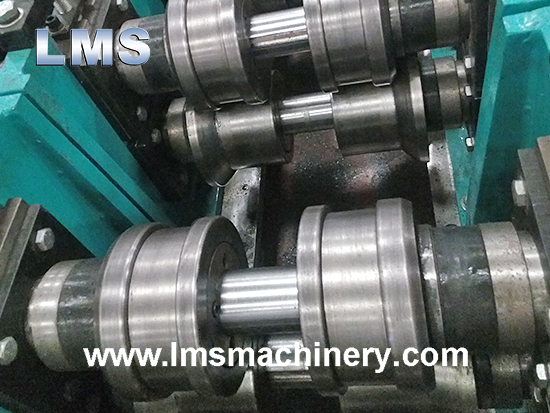

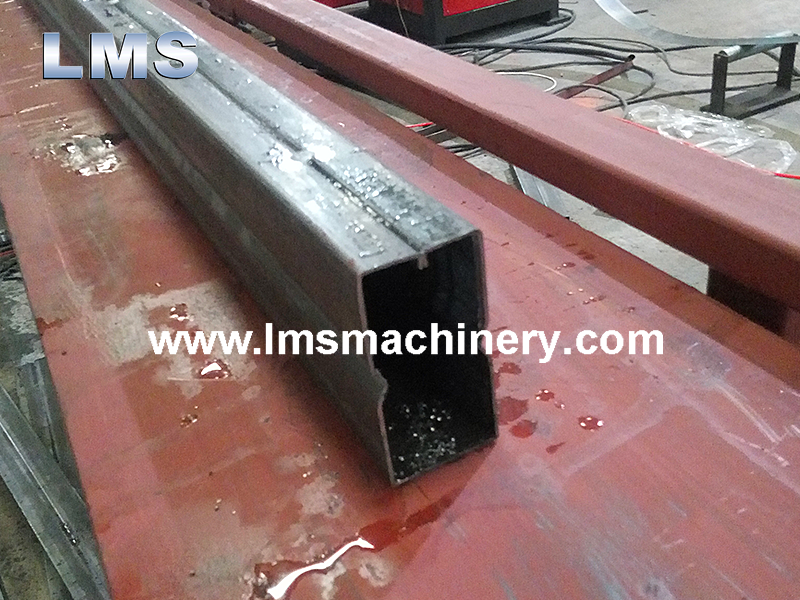

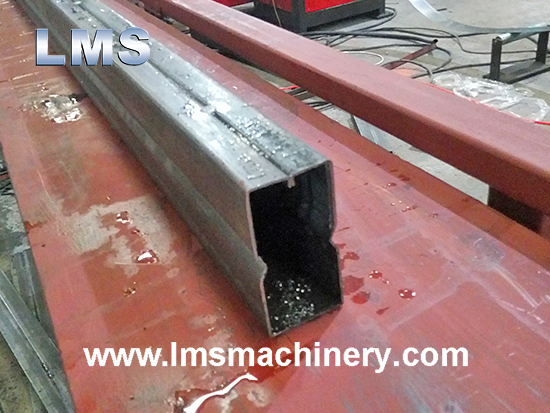

LMS Closed Cross Beam Roll Forming Machine mainly consists of decoiler, roll forming machine, cut-off device, electric control panel, electric welding machine, straightening device and run-out table. Widely used for closed cross beam production in customized dimension and design, LMS Closed Cross Beam Making Machine has the advantage of high production efficiency and accuracy, and stable performance.

Closed Cross Beam Roll Forming Machine Main Technical Parameters:



NO. Item Parameters
1 Material Galvanized Sheet
2 Material Thickness 1.5 MM
3 Material Width 295 MM (For Profile Size 98 × 50)
4 Groups Of Roller 24 Groups
5 Roll Forming Speed 10 M/Min
6 Power Supply 3 Phase 4 Lines AC 380V 50HZ



Closed Cross Beam Roll Forming And Welding Production Line Production Flow:



Material → Roll Forming → Straightening → Cutting-Off & Set Length → Final Product.



Closed Cross Beam Making Machine Composition:



NO. Item Quantity
1 Decoiler 1 Set
2 Roll Forming Machine 1 Set

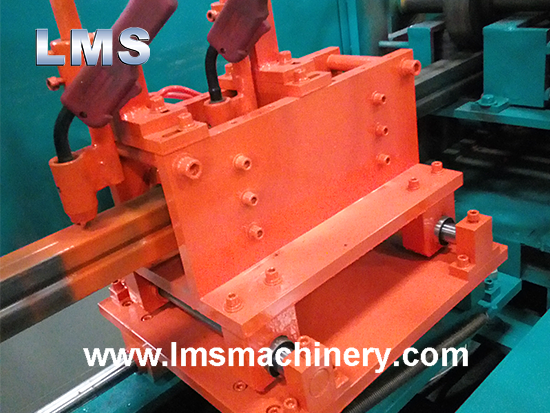

3 Cut-Off Device 1 Set
4 Electric Control Panel 1 Set
5 Electric Welding Device 1 Set

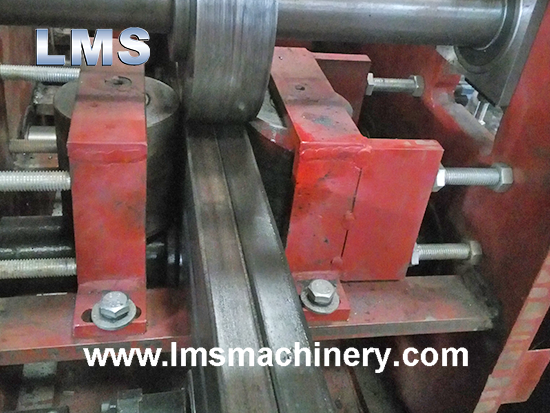

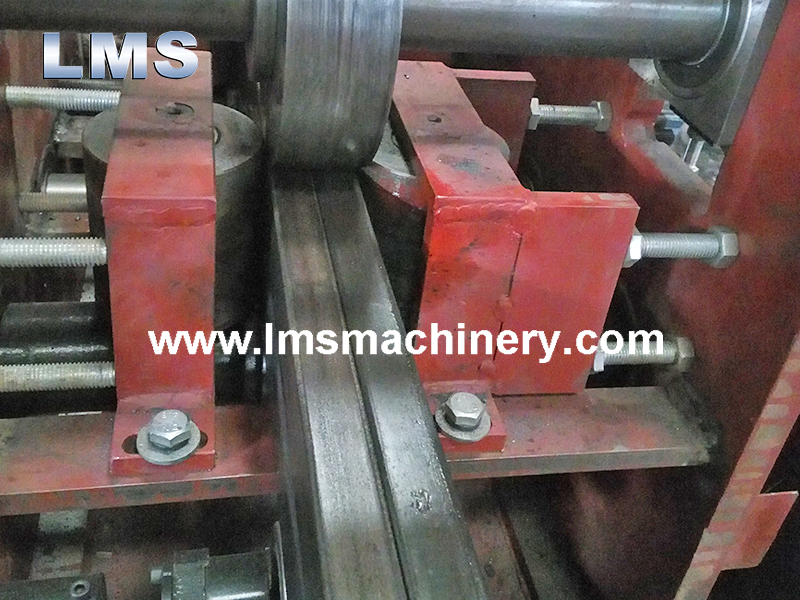

6 Straightening Device 1 Set
7 Run-Out Table 1 Set



Closed Cross Beam Roll Forming Machine, Cross Beam Machine



Closed Cross Beam Roll Forming And Welding Production Line



Closed Cross Beam Making Machine



Cross Beam Production Line



Closed Beam Machine
