Duct Manufacturing Auto Line VII

New Products

Duct Manufacturing Auto Line VII
Duct Manufacturing Auto Line VII Duct Manufacturing Auto Line VII Duct Manufacturing Auto Line VII Duct Manufacturing Auto Line VII

Duct Manufacturing Auto Line VII

  • Brand:

    LMS

  • item no.:

    Duct Manufacturing A

  • Payment:

    T/T

  • product origin:

    Guangdong, China

  • Color:

    Customerized

  • shipping port:

    HuangPu,Guangzhou

  • Lead Time:

    90 Days
Contact Us
Product Details

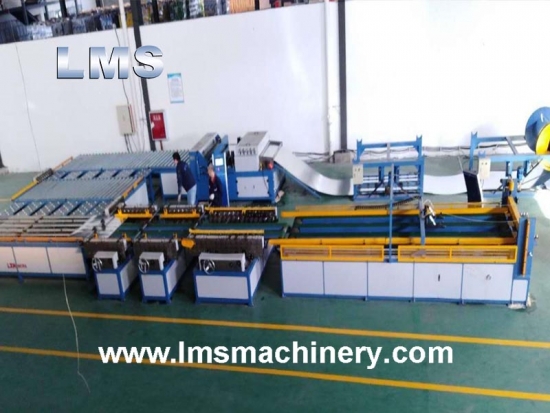

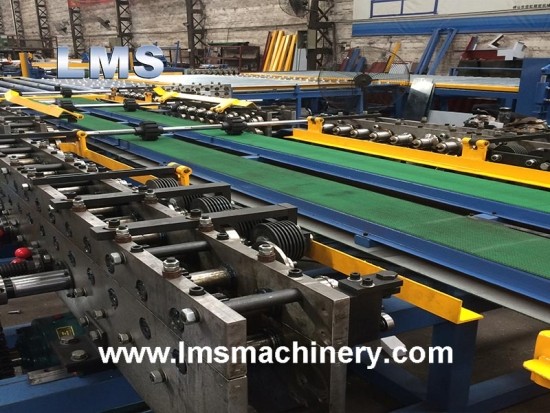

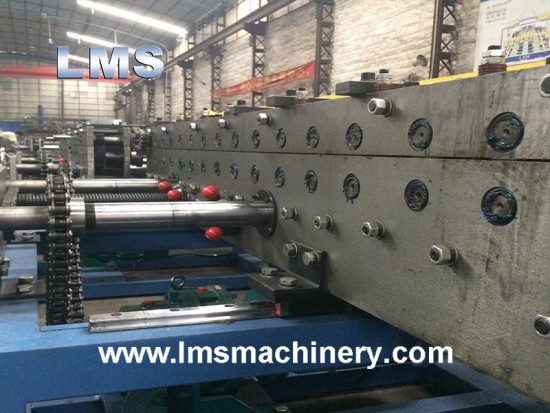

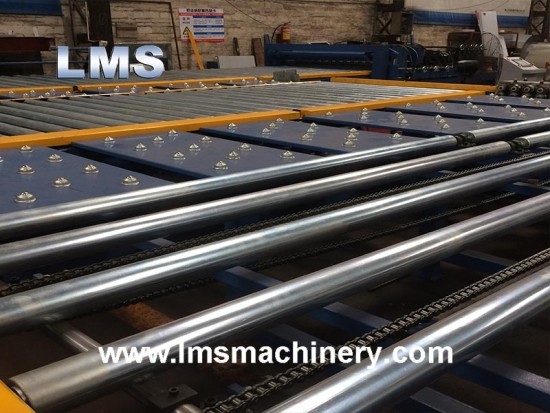

LMS Duct Manufacturing Auto Line VII

The automatic duct manufacturingauto super line VII is a new type of automatic processing line of duct forming developed by LMS. It has many functions. It can open and stock the long plates. It can directly finish flat type, L type right angle and combined angle pressing. The common plate is automatically finished by flange, C flange or angle flange. Ii is the complete line with good performance and high degree of automation, all production running speeds of up to 15m/min. The production efficiency is significantly higher than other similar devices, from decoiler to the end, TDF flange, flange angle (or bone C flange bending) to achieve full automation.

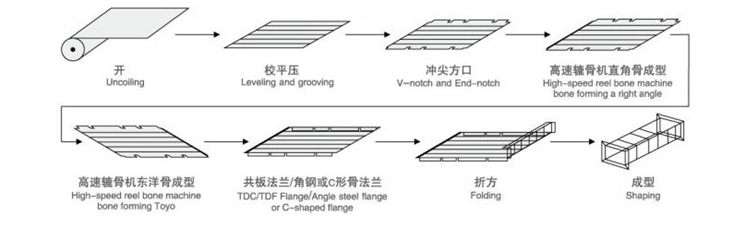

Work Flow of duct manufacturing auto line:

Duct Auto LineDuct Auto Line

Basic Device:

  1. 2 sets of electric decoiler
  2. 1 set of leveling and stiffening
  3. 1 set of notching device
  4. 1 set of clipper device
  5. 2 sets of lock former(Pittsburgh and single hem)
  6. 5 sets of sheet metal transition device (with mechanical hand)
  7. 1 set of duplex TDF flange
  8. C bone or angle steel flange forming machine (3 flange installed)
  9. 1 set of hydraulic TDF folding machine
  10. 1 set of mechanical automatic feeding devices
  11. 1 set of control system
  12. 1 set of hydraulic system
