Duct Manufacturing Auto Line VI


Duct Manufacturing Auto Line VI

Duct Manufacturing Auto Line VI

Duct line LMS-VI is our latest coil line. With U type structure, it cover less space and reduce time of plate passing which achieves the productivity of twenty-five seconds per piece.

  • Brand:

    LMS
  • item no.:

    Duct Manufacturing A
  • Payment:

    T/T
  • product origin:

    CHINA
  • Color:

    BLUE
  • shipping port:

    HUANGPU
  • Lead Time:

    90 DAYS
Contact Us
Product Details

LMS Duct Manufacturing Auto Line VI



Duct line LMS-VI is our latest coil line. With U type structure, it cover less space and reduce time of plate passing which achieves the productivity of twenty-five seconds per piece.



Just enter the sizes of the ducts you need to process, this full-auto line will complete the following process: Straightening, Beading, Notching, Slitting, Pittsburgh lock forming, TDF flange forming, Angle-iron flange forming and Auto folding.



It can produce two types of ducts: “L” shape or “口” shape. This line features high automation, high efficiency, low labor cost and less materials usage.





  1. According to the requirements of our customers, new U shape structure can not only save the production space, but also reduce the working time on conveyor.



  1. 800mm plate material can be finished within 20-23 seconds. Daily output up to 2000-3000 ㎡ per day.



  1. Servo mechanical feeder on beding is high precision, especially in procession“L” duct.



  1. High efficiency, small occupied area, low energy consumption, independent PLC control.

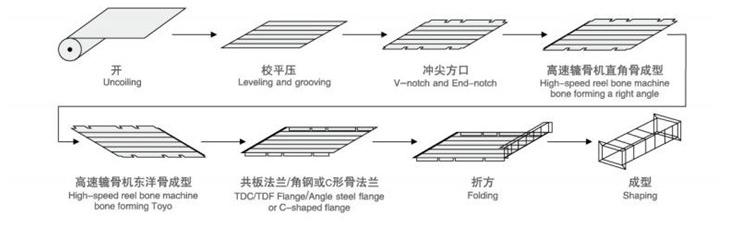

Work Flow of duct manufacuturing auto line:

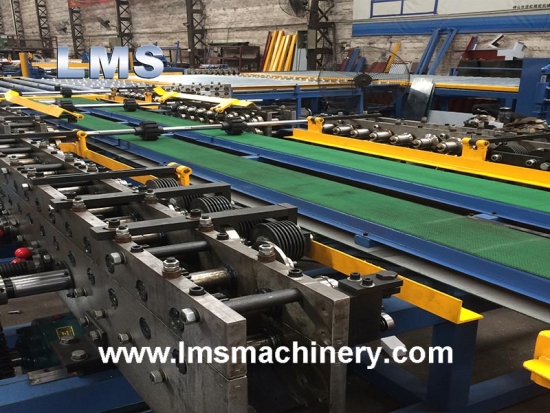

Duct line







Basic Equipment:



  1. 2 sets of electric decoiler
  2. 1 set of leveling and stiffener rolls
  3. 1 set of notching device
  4. 1 set of shearing device
  5. 1 set of lock former
  6. 3 sets of sheet metal transition device (with mechanical hand)
  7. 1 set of duplex TDF flange
  8. Duplex angle iron former or C flange former(one only)
  9. 1 set of hydraulic TDF folding machine
  10. 1 set of mechanical automatic feeding devices
  11. 1 set of control system
  12. 1 set of hydraulic system

Duct line

    A free consultation

    Please send us roll forming profile with specifications, thickness and other processing requirements for our customized machine.If you need standard machine, please send us the model you want.
