LMS Fire Damper Positive Pressure Air Supply Outlet Production Line


LMS Fire Damper Positive Pressure Air Supply Outlet Production Line

LMS Fire Damper Positive Pressure Air Supply Outlet Production Line

  • Brand:

    LMS
  • item no.:

    Fire Damper Machine
  • Payment:

    T/T
  • product origin:

    Guangdong, China
  • Color:

    Customized
  • shipping port:

    Huangpu, China
  • Lead Time:

    90 Days
Contact Us
Product Details

LMS Fire Damper Positive Pressure Air Supply Outlet Production Line

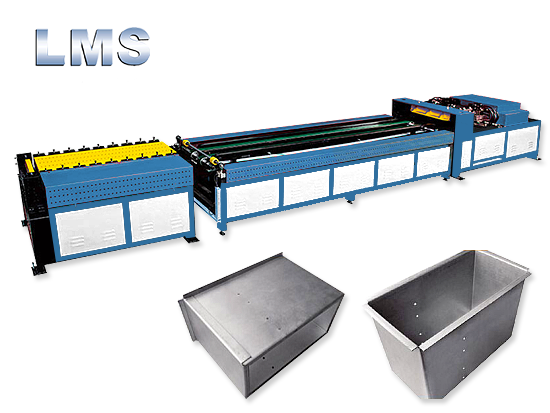

LMS Fire Damper Positive Pressure Air Supply Outlet Production Line is mainly composed of electric decoiler, leveling – punching – cutting machine, conveyor, roll forming machine, hydraulic bending system, hydraulic system and PLC control system, widely used for the mass production of fire damper positive pressure air supply outlet.  It is one of the important production line equipment for fire damper manufacture, with the advantage of high efficiency and precision, and stable performance.



Smoke Exhaust Damper Full-Automatic Production Line Main Technical Parameters:

 Item  Parameters
 Material  Galvanized Plate
 Material Thickness  1.5 - 2.0 MM
 Width of Coil  250 MM
 Weight of Coil  ≤ 5000 KGS
 Forming Speed  1 – 15 M/Min, Adjustable
 Plate Length Error  ± 0.3 MM / 1000 MM
 Punching Hole Distance Error  ± 0.3 MM / 1000 MM
 Bending Error of Frame  ± 1.0 MM / 1000 MM
 Processing Mode  Decoiling / Single Piece / Mouth Type / L Type / U Type
 Control Mode  PLC Control
 Main Power Supply  380 V, 50 HZ, 3 Phase
 Hydraulic System Pressure  25 MPa, Working Pressure: 8 – 12 MPa
 External Dimensions of Line  Approx. 12000 × 1000 × 1200 MM (L × W × H)
 Total Power of Line  Approx. 16 KW



Positive Pressure Air Supply Molding Machine Production Process:

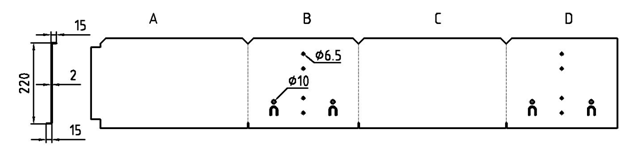

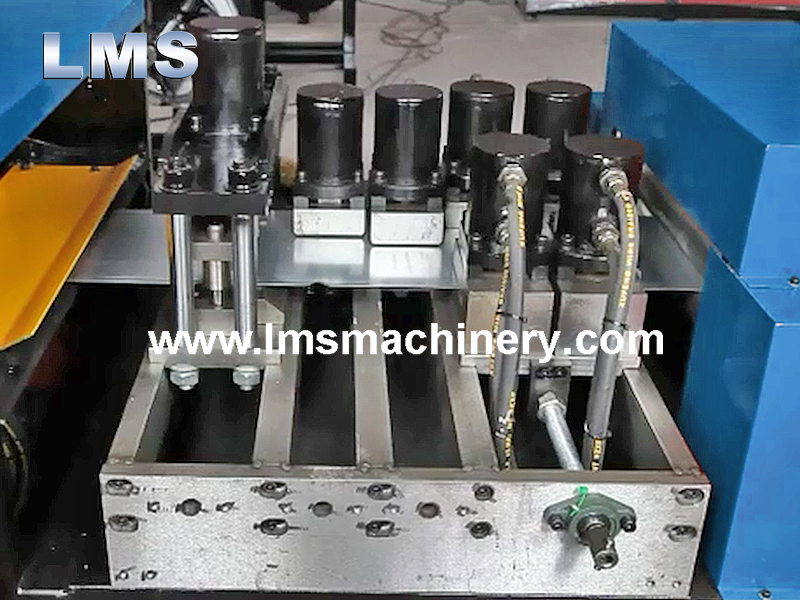

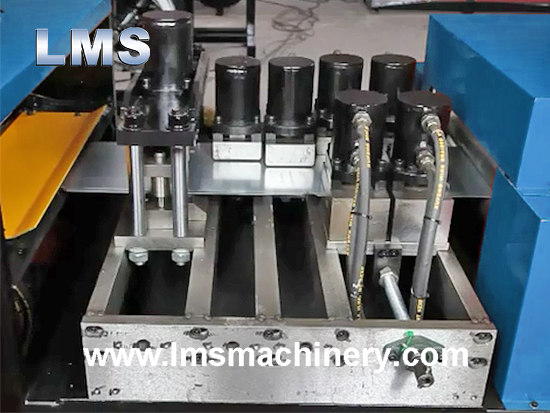

Decoiling → Material Guiding → Leveling → Big Edge Punching → Small Edge Punching → Installing Hole Punching (∅ 16 mm) → Panel Hole Punching → Cutting To Length → Conveying → Roll Forming → Hydraulic Automatic Bending → Manual Discharging.



Fire Damper Positive Pressure Air Supply Outlet Forming Machine Composition:



Item Quantity
5T Electric Decoiler 1 Unit

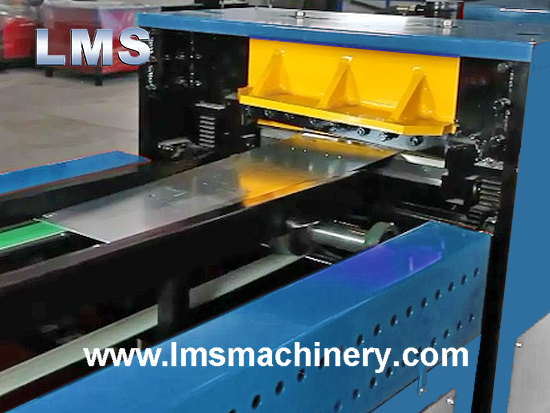

Leveling – Punching – Cutting Machine 1 Unit
Conveyor 1 Unit

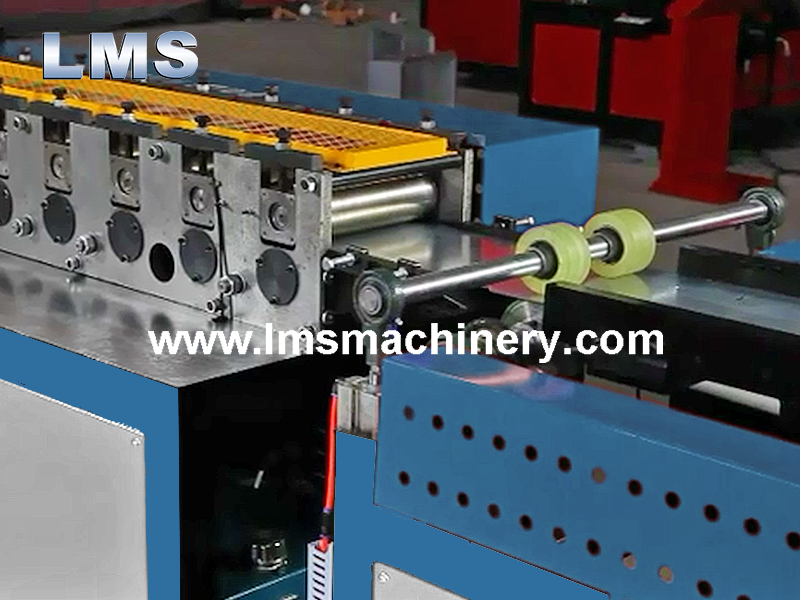

Roll Forming Machine 1 Unit
Hydraulic Bending System 1 Set
Hydraulic System 2 Sets
PLC Control System 1 Set



Smoke Exhaust Damper Full-Automatic Production Line Fire Damper Machine



Positive Pressure Air Supply Molding Machine Smoke Exhaust Damper Forming Machine



Fire Damper Positive Pressure Air Supply Outlet Forming Machine
