Telescopic Slide Roll Forming Machine Explained

Telescopic Slide Roll Forming Machine Explained

  • 2019/5/5

Telescopic Slide Roll Forming Machine, also called drawer slides roll forming machine , slide rail making machine, drawer slides machine etc.

It is a cold roll forming process, which is similar to the roofing product, but requires a higher performance in profile. Types of Product Names of drawer slides vary such as, telescopic channel slides, drawer runner, under mount slide rail, steel ball slide, and ball bearing drawer slides etc.

Major types of drawer slides are 2-section and 3-section, which consist of outer, middle, and inner rail. They are widely used in kitchen cabinet, home furniture hardware, office appliance, and industrial equipment. drawer slide machine Process of Slides roll forming Processes of drawer slides roll forming is a continuous cold rolled steel strip passing through a set of rollers, and then punching, straightening, and cut off to length.

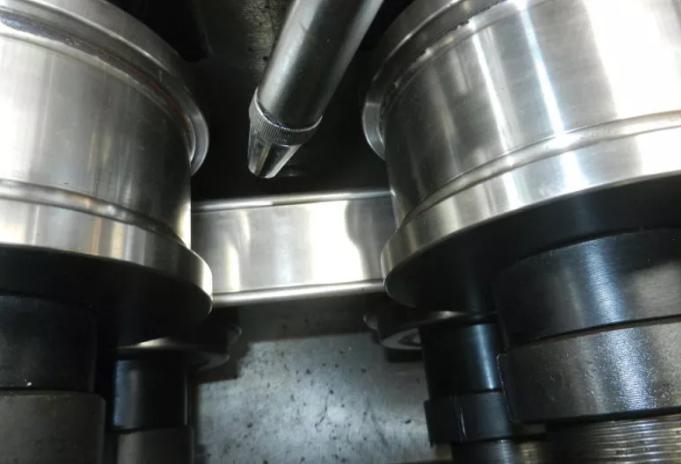

The roller of Full Automatic Telescopic Drawer Slide Production Line is of advanced manufacturing technique by using CNC facility for roller' s precision machining and image-mapping instrument testing to make sure roller and main shaft's jumping tolerance within 0.03 mm Straightening is an important part to avoid material twisting or curling.

Telescopic Drawer Slide Channel Production Line is provided with straightening mechanism to make sure the material is nicely formed in a predetermined shape to meet the original design.

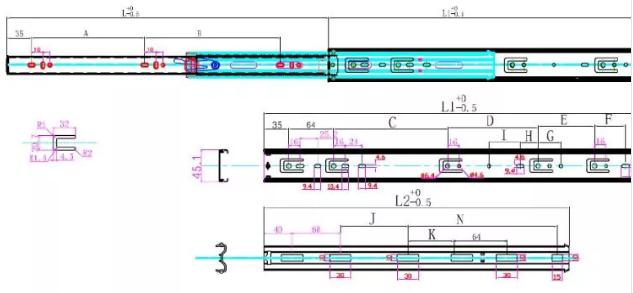

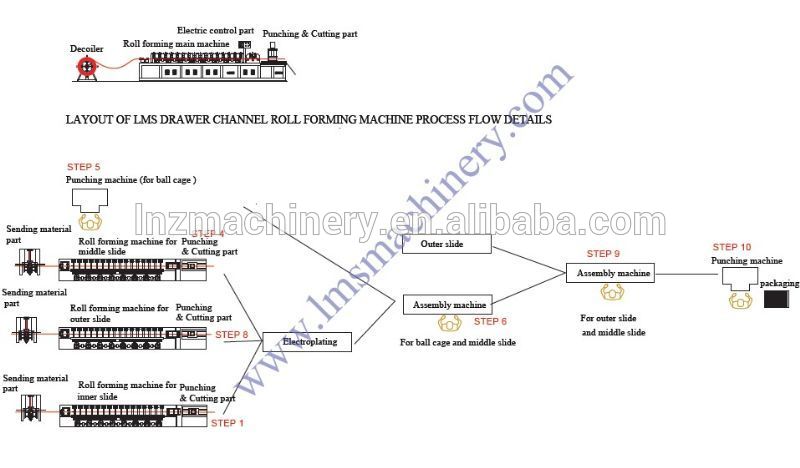

Telescopic Drawer Slide Channel Production Line Working Flow: Material Coil - Decoiling - Roll Forming - Hydraulic Punching - Cutting - Discharge - Finished Profile. slide machine Customized roll forming lines Every slide rail varies in some detailed design, LMS MACHINERY is capale for providing a customized production line to meet the expected profile.

Although the development takes time and costs, especially for undermount drawer slides, and the profile is not as easy as profile like roofing, Telescopic Drawer Slide Channel Production Line can achieve those with advanced technology and solution for manufacturing.

drawer slide machinedrawer slide machine

drawer slide machine
