LMS Step Beam Roll Forming Machine


LMS Step Beam Roll Forming Machine

LMS Step Beam Roll Forming Machine

  • Brand:

    LMS
  • item no.:

    Beam Roll Forming Machine
  • Payment:

    T/T
  • product origin:

    Guangdong, China
  • Color:

    Customized
  • shipping port:

    Huangpu, China
  • Lead Time:

    90 Days
Contact Us
Product Details

LMS Step Beam Roll Forming Machine



CONTACT US FOR ONE-TO-ONE PERSONAL ROLL FORMING MACHINE SERVICE, EMAIL: [email protected]





Machine video:



CONTACT US FOR ONE-TO-ONE PERSONAL ROLL FORMING MACHINE SERVICE, EMAIL: [email protected]

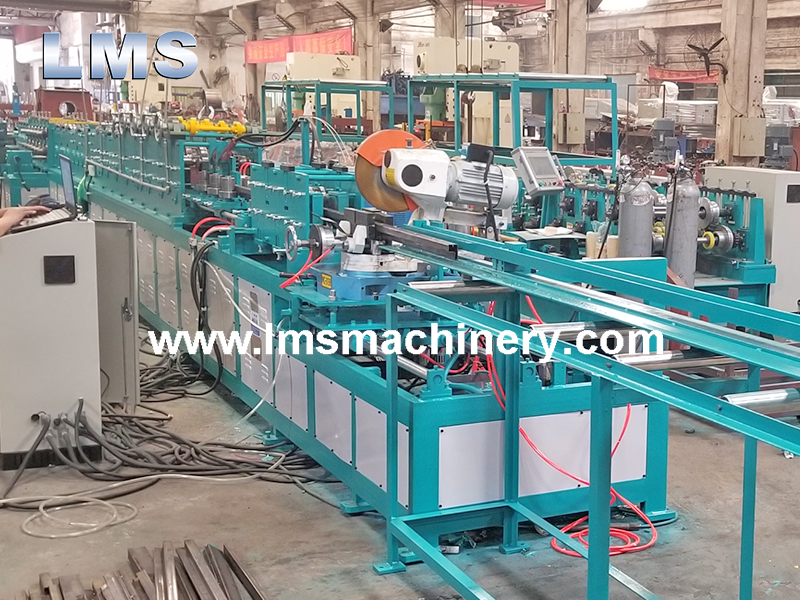

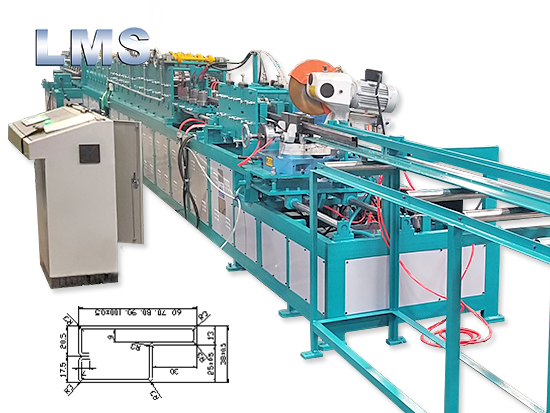

LMS Step Beam Roll Forming Machine mainly consists of manual decoiler, roll forming machine, disc saw cut-off device, electrical control system and run-out table. Widely used for step beam production in customized dimension and design, LMS Step Beam Making Machine has the advantage of high production efficiency and accuracy, and stable performance.



Step Beam Making Machine Main Technical Parameters:

1. Suitable Material: Carbon Steel Coil / CR Coil

2. Material Thickness: 1.6 - 2.0 MM

3. Profile Specification: Same As Drawing

4. Profile Size Tolerance: ±0.5 MM

5. Profile Twisting & Linear Tolerance: 1.0 MM‰



Shelving Step Beam Roll Forming Machine Production Flow:

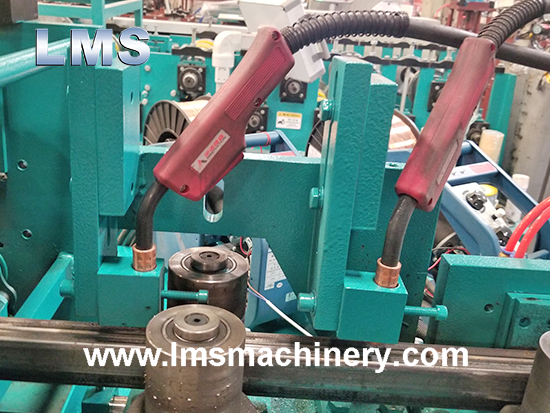

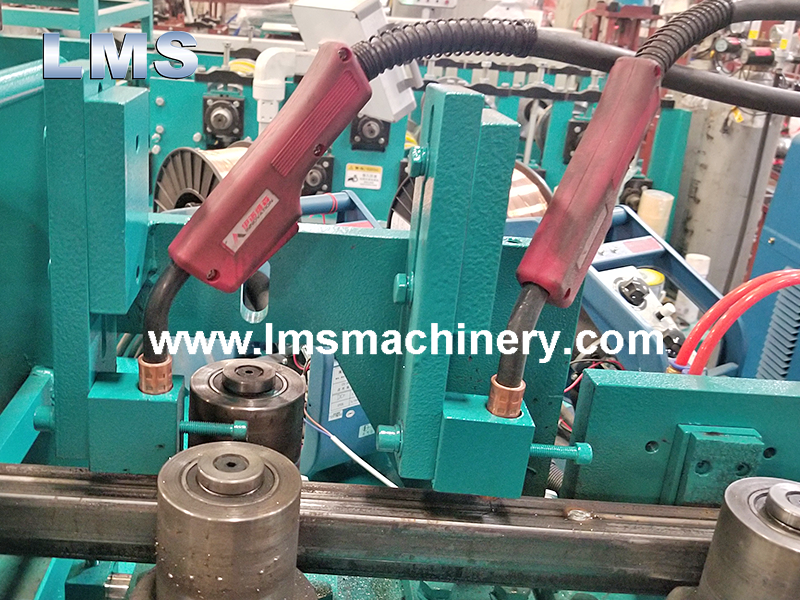

Material Coil → Decoiling → Feeding → Roll Forming → On-Line Spot Welding → Cutting Off → Finished Profile.



Storage Rack Beam Roll Forming Machine Composition:



NO. Item Quantity
1 Manual Decoiler 1 Set

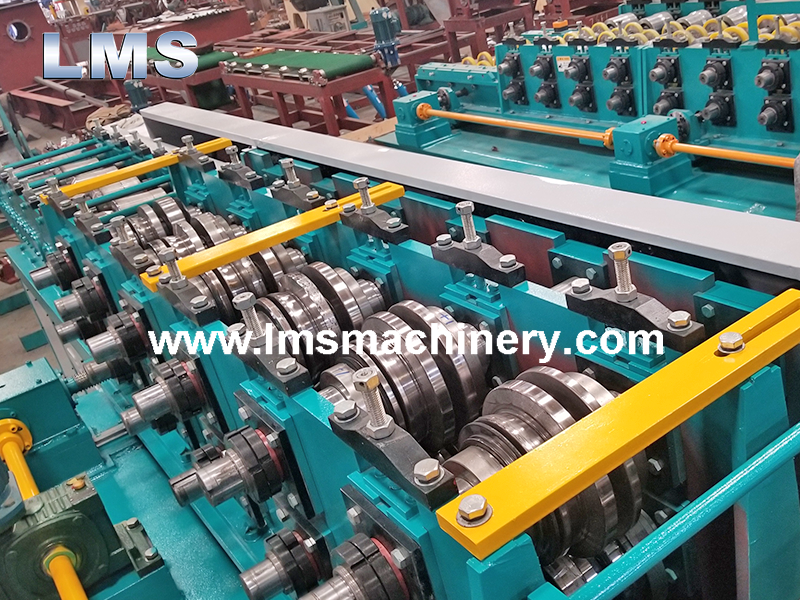

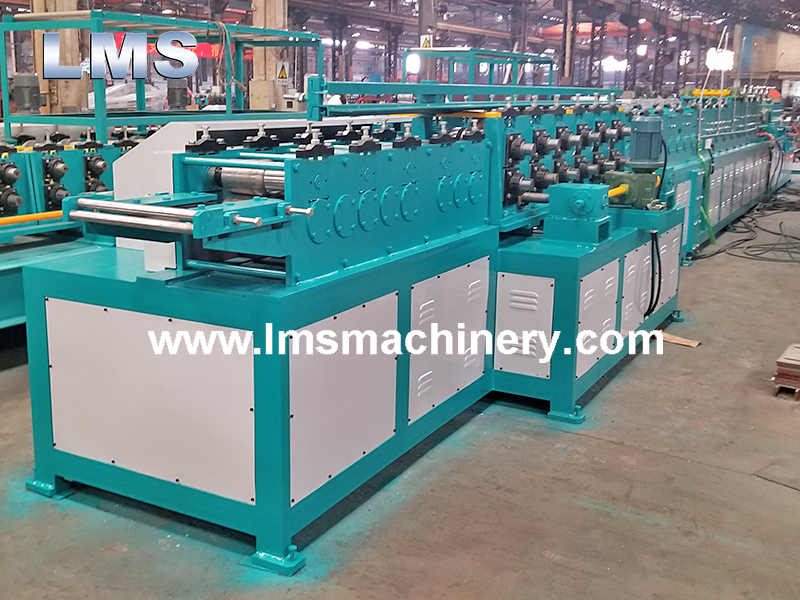

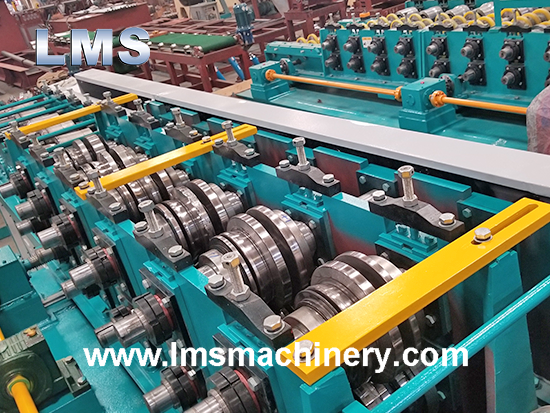

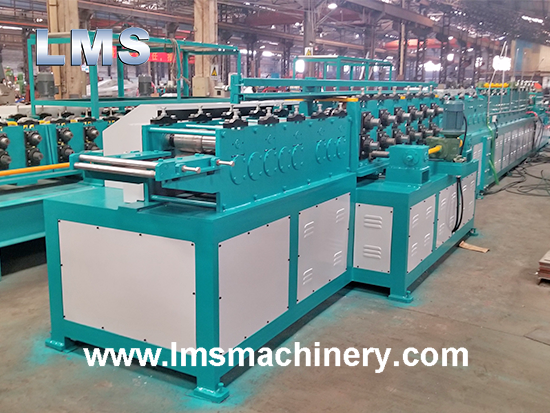

2 Roll Forming Machine 1 Set

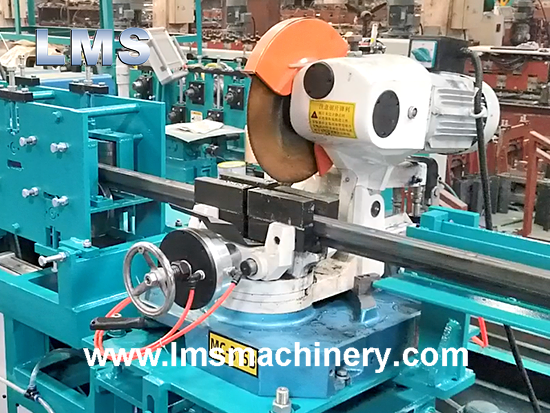

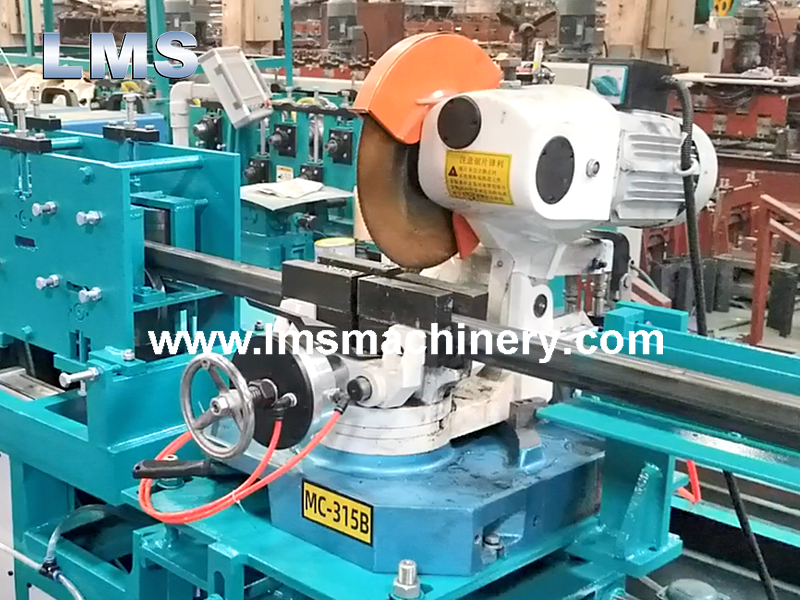

3 Disc Saw Cut-Off Device 1 Set
4 Electrical Control System 1 Unit
5 Run-Out Table 1 Set


Step Beam Machine



Beam Roll Forming Machine



Step Beam Making Machine



Shelving Step Beam Roll Forming Machine



Storage Rack Beam Roll Forming Machine
