Door Shutter Roll Forming Machine With Punching
Door Shutter Roll Forming Machine With Punching Door Shutter Roll Forming Machine With Punching

Door Shutter Roll Forming Machine With Punching

  • Brand:

    LMS

  • item no.:

    Door Shutter

  • Payment:

    T/T

  • product origin:

    Guangdong,China

  • Color:

    Customized

  • shipping port:

    Huangpu, Guangzhou

  • Lead Time:

    70 Days
Contact Us
Product Details

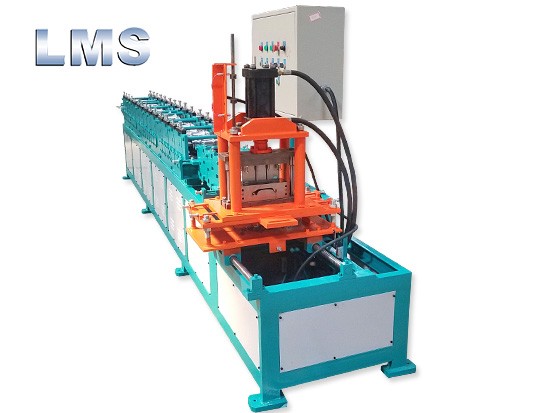

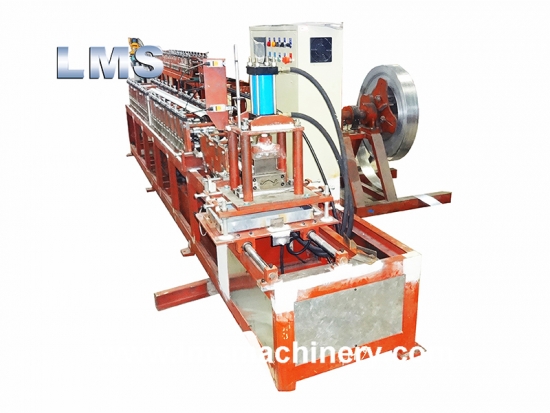

LMS Door Shutter Roll Forming Machine with Punching hole





Roll Forming Machine comprises of following parts:

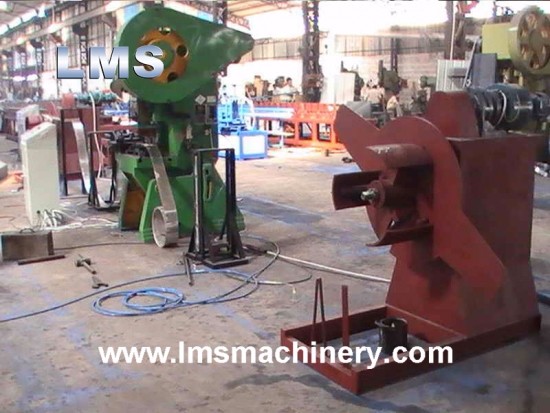

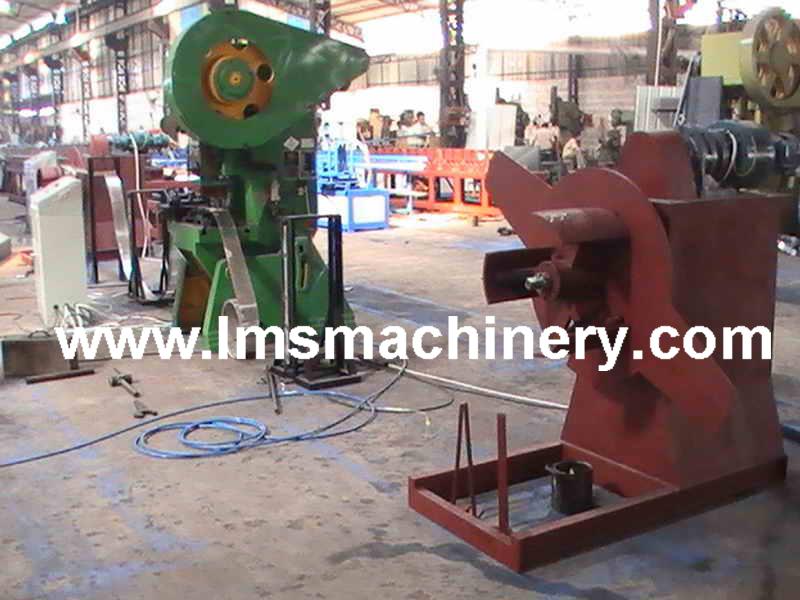

1.decoiler

Max.outter diameter: 1400mm

Inner diameter of coil: 400--450 mm

material width: 300mm

loading capacity: 2 tons



2. Punching machine

Yangli, Good China brand punching machine

Continous punching, online punching, optional & various punching hole type



3.roll forming machine

rollers:14 Groups

hardness for heat treatment: HRC55 – 57

roller thickness :175mm

roller material thickness: 0.6mm—0.8mm

shaft diameter : 40mm , material :45# steel

wall thickness:22mm

Gear thickness : 35mm

Motor Power :4 kw , cycloidal needle speed reducer

Rolling Speed :10 m / min



3.cut off device

motor: 2.2kw

one  set of cut-off mould



4.run out table

table length :6 m

table structure apply angle iron

Related Tags :

Roller Shutter Forming Machine Roller Shutter Door Forming Machine High Quality Roll Forming Machine Shutter Door Roll Forming Machine Punch Shutter Door Machine Door Shutter Froming Machine
    A free consultation

    Please send us roll forming profile with specifications, thickness and other processing requirements for our customized machine.If you need standard machine, please send us the model you want.
